CNC Carbide Insert Threading Tool Al2O3 Coating CNC Tools Insert
Specifications
| Model No. | Screw Pitch/ (Threads per Inch/ Foot) | S | ⌀I.C | ⌀d | α° |
| 22.01NL-5.00GM | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 55° |
Description
1. About cemented carbide materials:
1) Cemented carbide is an alloy material made of hard compounds of refractory metals and binders
Metal powder metallurgy process.
2) Cemented carbide has high hardness, wear resistance, good strength and toughness, heat resistance and corrosion resistance
resistance and a range of excellent properties.
2. Threaded inserts reduce machining process:
There is no need to complete the processing of the threaded part before thread processing, and it can be processed
The top diameter of the thread is brought to the desired size by polishing the edge during threading,
while ensuring a very good finish;
3. Automatic deburring:
The polished edge of the thread enables the blade to polish the top diameter of the machined thread,
This ensures that the hair does not need to be removed after the thread has been processed and solves the disadvantage
Poor surface finish in threading
4. Excellent chip breaking performance:
A wave-shaped chip breaker is designed on the rake face of the threaded insert. generated chip flow
During cutting, lifted by the chip breaker, which guides the chip along the front end of the chip
Disconnect the table and control the forming so that the chips can obtain a smaller radius of curvature;
5. Universal groove design:
Due to this special chip breaking structure, it mainly controls chip generation, flow, curling and chip breaking
It is determined by the blade itself, so when processing workpieces of different materials and using different processing
parameter can obtain satisfactory processing results.

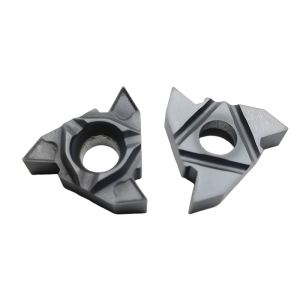

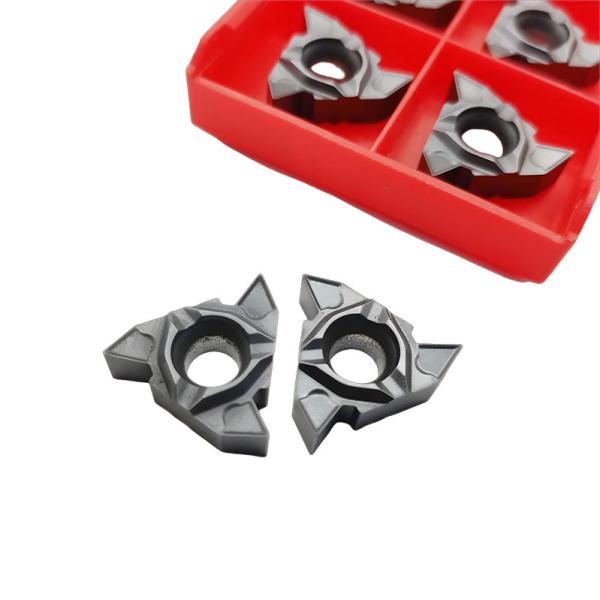

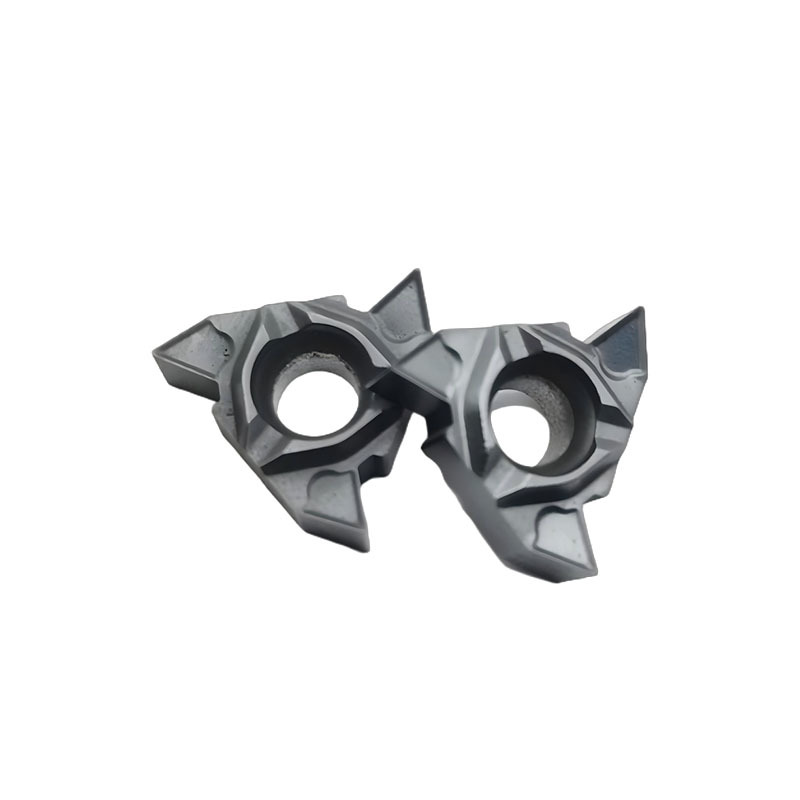

Product images
Application
About Gaoxing Toolings
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional carbide inserts manufacturer and has our own factory based in Zigong.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We have skilled personnel who have worked in carbide insert producing for many years.
3)We have been in the business for over 20 years and know what is right for our customers and how to produce qualified inserts for them.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
