CNC Carbide Insert Threading Tool Al2O3 Coating CNC Tools Insert
Specifications
| Model No. | Screw Pitch/ (Threads per Inch/ Foot) | S | ⌀I.C | ⌀d | α° |
| 22.01NL-5.00GM | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 55° |
Description
1.About cemented carbide material:
1)Cemented carbide is a kind of alloy material made of hard compound of refractory metal and bonding
metal by powder metallurgy process.
2)Hard alloy has high hardness, wear resistance, good strength and toughness, heat resistance, corrosion
resistance and a series of excellent properties.
2.Thread inserts reduce the processing process:
before threading processing do not need to be finished in the processing of the thread part, can be processed
by the polishing edge during threading processing, so that the top diameter of the thread to reach the ideal size,
while ensuring a very good finish;
3.Automatic deburring:
The polishing edge of the thread realizes the polishing of the top diameter of the processed thread by the blade,
which ensures that there is no need to remove the hair after processing the thread, and solves the disadvantage
of poor surface finish in the thread proces
4.Excellent chip breaking performance:
A wavy chip breaking table is designed in the front cutter surface of the threaded blade. The chip flow generated
during cutting is lifted by the chip breaking table, which guides the chip moving along the front end of the chip
breaking table and controls the forming so that the chip can obtain a smaller radius of curvature;
5.Universal groove design:
Because of this particular chip breaking structure, the chip generation, flow, crimping, breaking is mainly controlled
by the blade itself, so in the processing of different materials of the workpiece and the use of different processing
parameters can obtain satisfactory processing results.

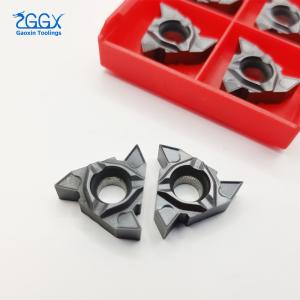

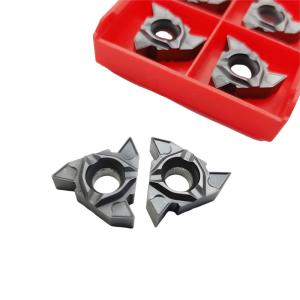

Product images
Application
About Gaoxing Toolings
FAQ
Q: Are you a manufacturer?
A: Yes, We are a professional carbide inserts manufacturer and has our own factory based in Zigong.
Q: Can you supply with drawing or on an ODM basis?
A: Yes, We can supply customized products.
1) We can produce according to your drawings;
2) We can supply goods with medium-sized packaging without our logo, then you can repack at your side with your brand packaging;
3) If volume is big, we can pack at our side with your brand packaging.
Q: Why we cooperate with you?
A: There are some reasons:
1) We are a company with adequate production machines, inspection instruments, which can supply good quality products with reasonable price;
2) We have skilled personnel who have worked in carbide insert producing for many years.
3)We have been in the business for over 20 years and know what is right for our customers and how to produce qualified inserts for them.
Q: Is application engineer available when needed?
A: Yes, we provide online training and technical support. When any tough challenges are faced by user, we will send our application engineer to provide on-site technical support at customer's site.
